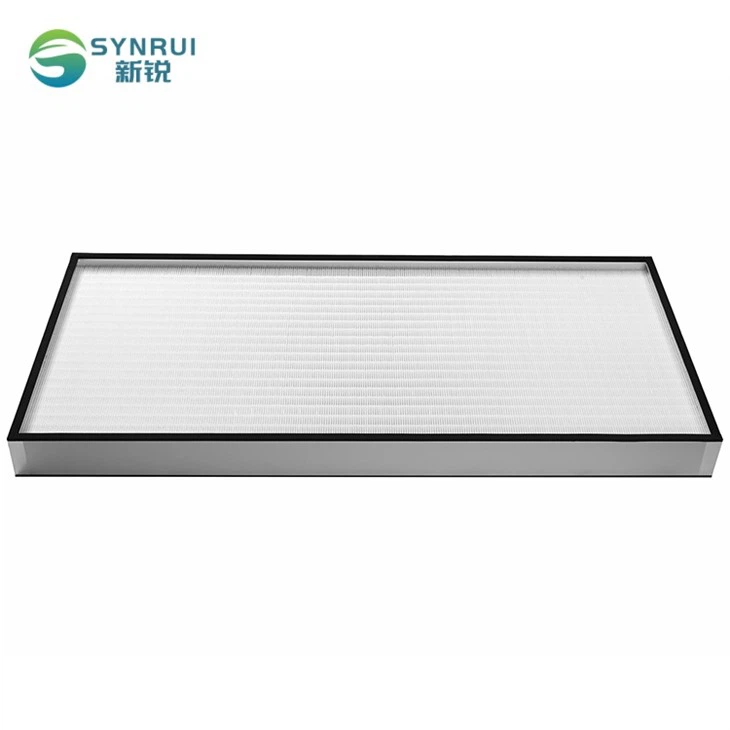

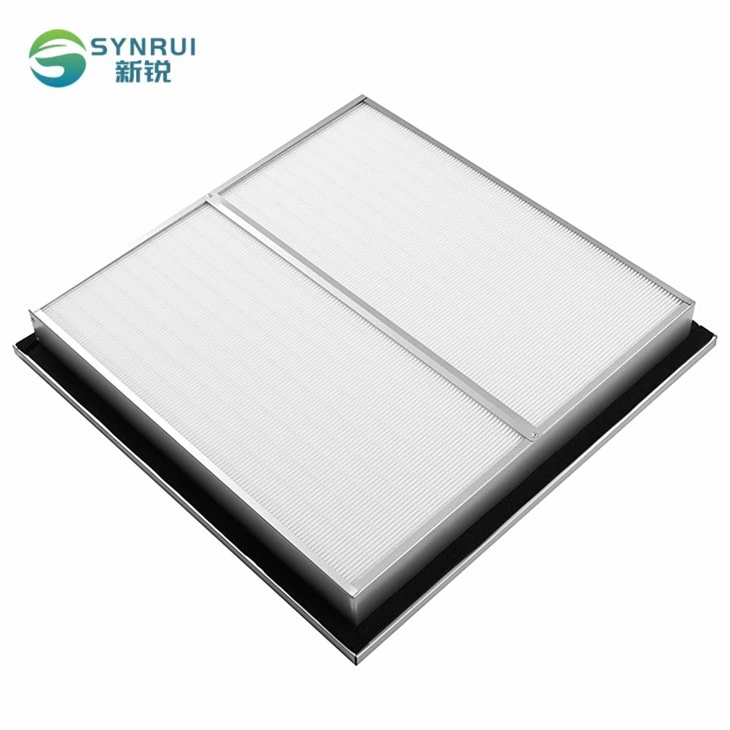

Product Definition
Structural design: The frame is usually made of aluminum profiles, galvanized sheets and other materials, which are strong and corrosion-resistant. The filter element uses synthetic fiber or glass fiber filter paper, which is folded into pleats by a special process to increase the filtration area. The partition uses hot melt adhesive to evenly separate the pleated filter material to form a stable airflow channel.
Working principle: When air containing pollutants such as dust and impurities passes through the mini pleat medium efficiency filter, the filter material can capture particles in the air and intercept and adsorb particles of different sizes according to the pore size and filtration efficiency of the filter material, thereby achieving the purpose of purifying the air.
Product Features
|
Product Name |
Mini Pleat Medium Efficiency Filter |
|
Grade |
F9/F8/F7/M6/M5 |
|
Type |
Box type, Single flange, Double flange |
|
Frame |
Galvanized frame, Aluminum frame |
|
Filter media |
Glass fiber |
|
Max temperature |
70℃ |
|
Max humidity |
100%RH |
|
separator |
Hot Melt |
|
Seal strip |
EPDM |
|
Transport packaging |
Carton Box |
|
Origin |
Liaocheng, China |
|
Efficiency： |
|||
|
Grade |
Filter Particles |
Filter Effect |
Standard |
|
M5 |
≥0.5μm |
40~60% |
EN 779 / MERV 10 (ASHRAE 52.2) |
|
M6 |
≥0.5μm |
60~80% |
EN 779 / MERV 11~12 (ASHRAE 52.2) |
|
F7 |
≥0.5μm |
80~90% |
EN 779 / MERV 13 (ASHRAE 52.2) |
|
F8 |
≥0.5μm |
90~95% |
EN 779/ MERV 14 (ASHRAE 52.2) |
|
F9 |
≥0.5μm |
≥95% |
EN 779/ MERV 15~16 |
|
(DOP/PAO particle counting method) |
|||
Application
Mini pleat medium efficiency filter is mainly used in scenarios with medium purification requirements:
Industrial field
Intermediate filtration in clean rooms such as electronic component production workshops, semiconductor workshops, and food processing plants.
Commercial facilities
Ventilation systems in hospitals, laboratories, supermarkets, etc., used to intercept pollutants such as pollen and dust.
Special scenarios
Used in conjunction with high-efficiency filters as a pre-protection layer for clean room multi-stage filtration systems.
Parameter Table
| Nominal Size W*H*D (in) |
Actual Size W*H*D (mm) |
Air Flow (m³/h) |
Initial P.D.(Pa) | Recommended Final P.D.(Pa) |
|||
| M5 | M6 | F7 | F8 | ||||
| 12*24*2 | 287*592*50 | 1450 | 65 | 75 | 120 | 160 | 350 |
| 24*24*2 | 592*592*50 | 2900 | 65 | 75 | 120 | 160 | |
| 12*24*2 | 305*610*50 | 1600 | 65 | 75 | 120 | 160 | |
| 24*24*2 | 610*610*50 | 3200 | 65 | 75 | 120 | 160 | |
| 24*24*4 | 592*592*96 | 2900 | 60 | 70 | 90 | 105 | |
| 24*24*4 | 610*610*96 | 3200 | 60 | 70 | 90 | 105 | |
| Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company | |||||||
Synthetic Fiber Bag Filter Advantages
Mini pleat medium efficiency filter is small in size and light in weight, easy to install and carry, and effectively saves installation space;
The dense pleat design has a large filtration area, which ensures low resistance while achieving a large dust holding capacity, thereby reducing operating costs;
The filtration efficiency is stable and the wind speed is uniform, effectively ensuring the air filtration effect;
The partition-free design reduces material use, reduces production costs, and avoids the problem of decreased filtration performance due to partition damage.

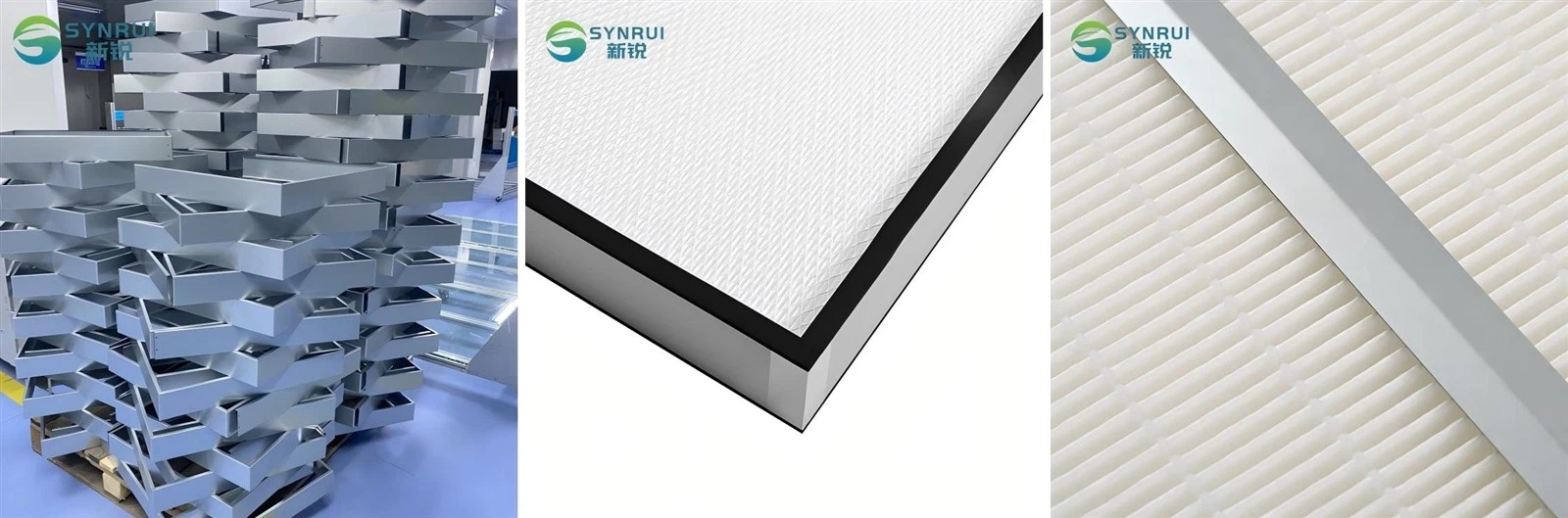

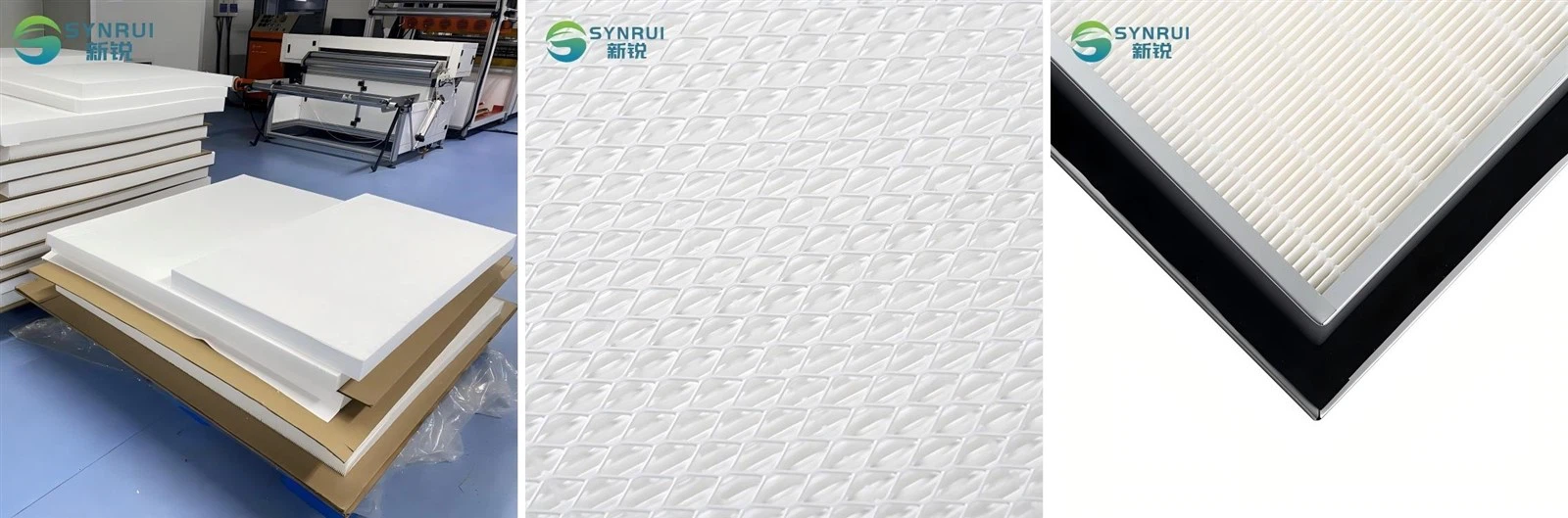

Product Details and Profiles

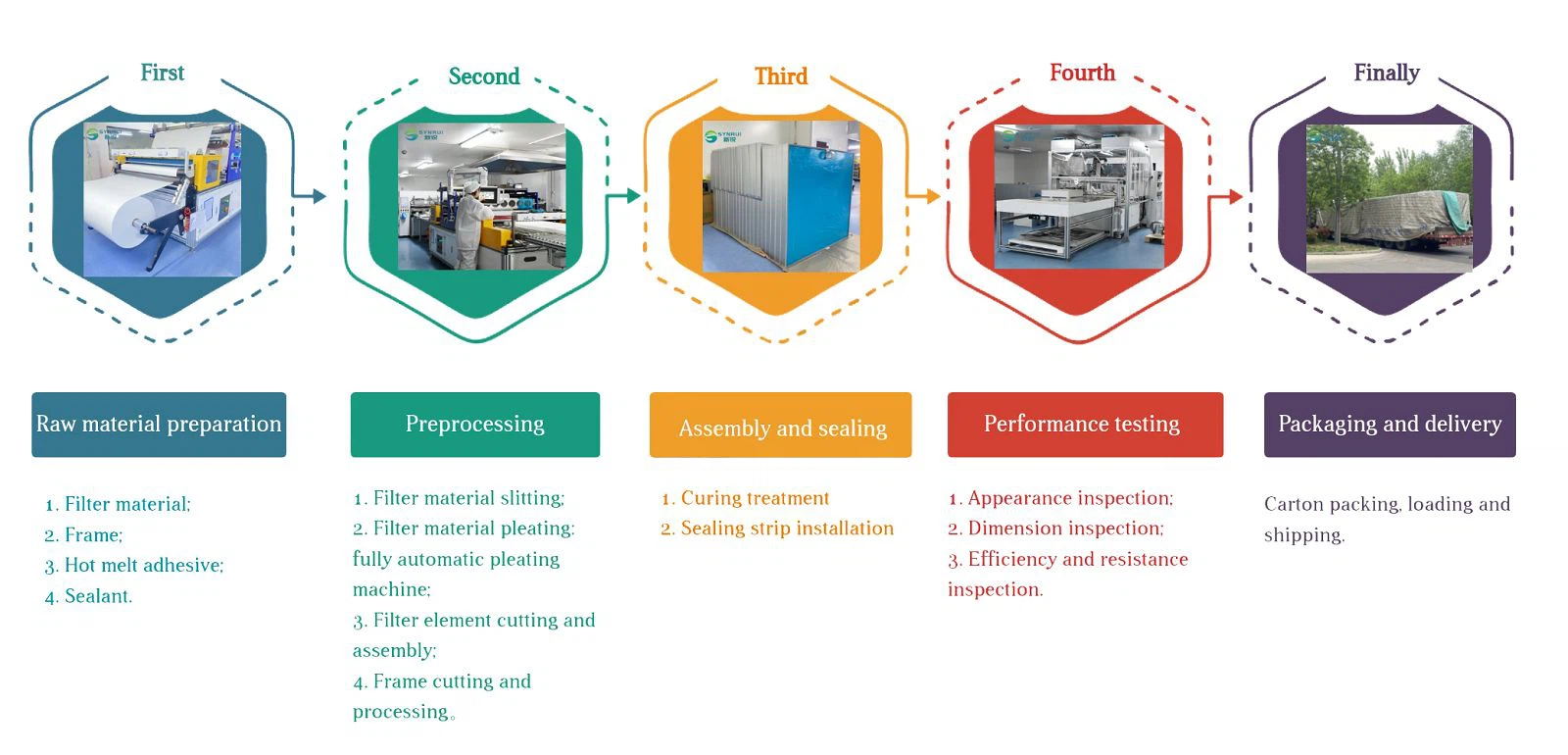

Production Flow Chart
Who Is The Mini Pleat Medium Efficiency Filter Suitable for?
- Enterprises pursuing energy saving (low wind resistance and power saving).
- Places with limited space (compact design).
- Solutions with limited budget but requiring reliable filtration (high cost performance).
- High dust environment (long life, high dust holding capacity).

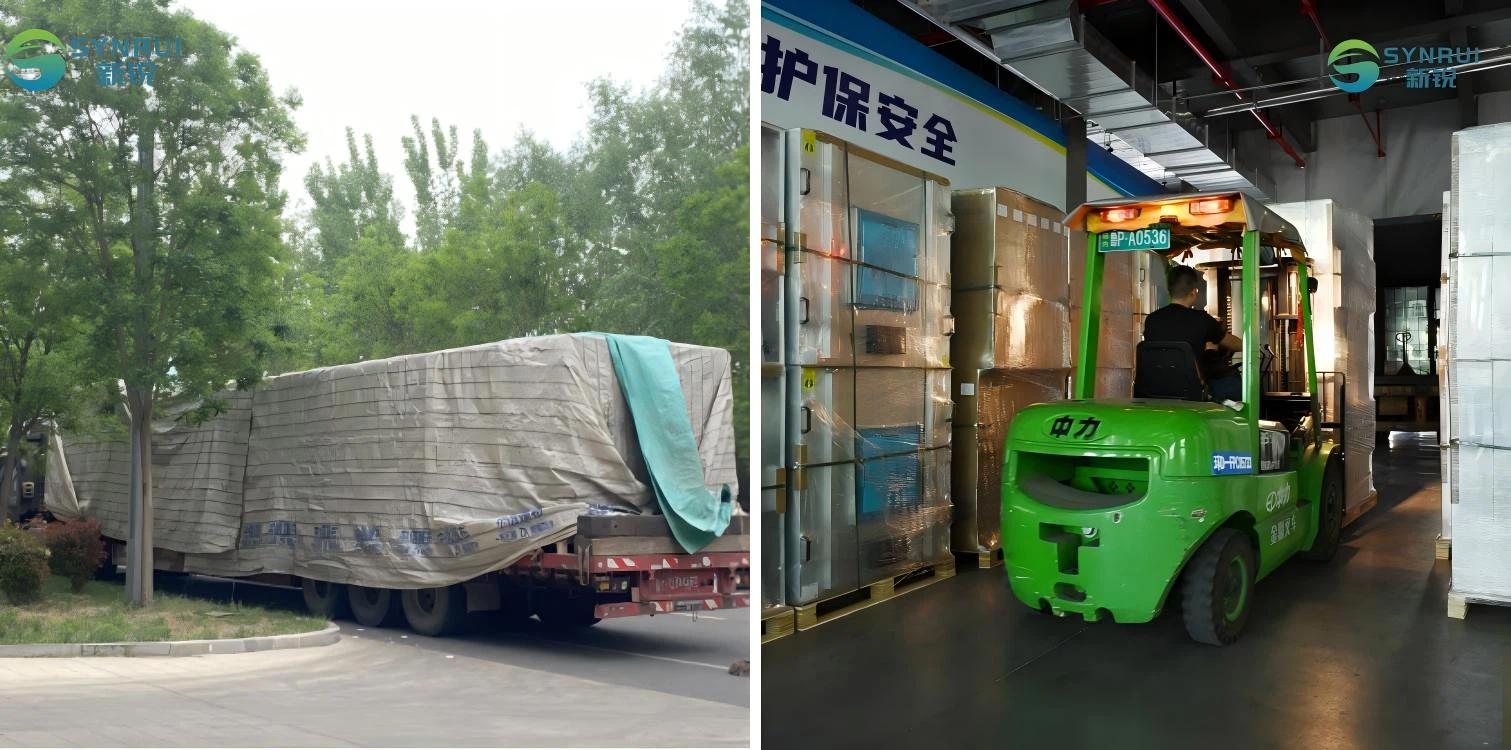

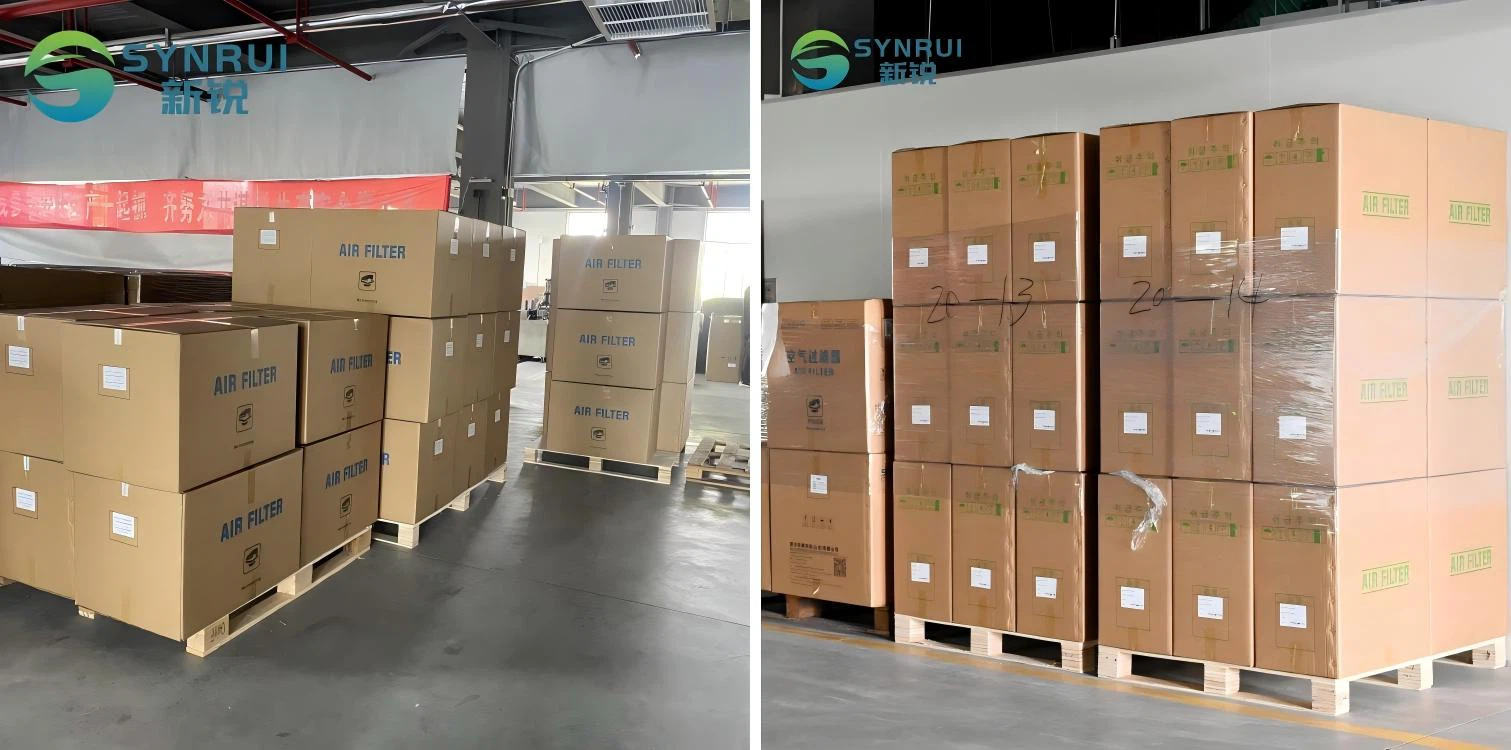

Packaging And Transportation
FAQ
