Product Definition

The Leak free replaceable HEPA supply unit structure consists of:

Static pressure box

Cold-rolled steel plates are welded together, and all welds are sealed with special glue to prevent air leakage.

High efficiency filter

It is a high efficiency filter with high filtration efficiency and low resistance. It is made into a whole with the static pressure box and adopts a replaceable design.

Regulating valve

Installed at the air inlet of the static pressure box to adjust the uniformity of air supply and static pressure effect.

Diffuser

Located at the end of the air outlet, its function is to evenly distribute the filtered fresh air to all around.

Product Features

Product Name	Leak free Replaceable HEPA Supply Unit
Type	Air Supply Outlet
Filter Grade	HEPA Filter
Box Material	Plastic sprayed cold rolled steel plate
Air intake	Plastic sprayed cold rolled steel plate
Current share board	Plastic sprayed cold rolled steel plate
Compact	Galvanized steel sheet
Media guard	Plastic sprayed aluminium orifice plate/Plastic sprayed Cold Rolled steel orifice plate /Stainless steel (SUS304)
Control valve	Cold press spraying
Insulation cotton	PE
Transport packaging	Carton
Origin	Liaocheng, China

Efficiency：
Grade	Filter Particles	Filter Effect	Standard
H13	≥0.3μm	≥99.99%	EN 1822/MERV18(ASHRAE 52.2)
H14	≥0.3μm	≥99.999%	EN 1822/MERV19(ASHRAE 52.2)
(DOP/PAO particle counting method)

Application

Medical field

Hospital operating rooms, delivery rooms, intensive care units, laboratories and other places.

Electronic semiconductor industry

electronic chip manufacturing, semiconductor production and other links, providing a clean air environment for the production of precision electronic components and improving product yield.

Pharmaceutical industry

Pharmaceutical workshops, drug production clean rooms, etc.

Food processing industry

In food production workshops, bakery rooms and other places.

Parameter Table

Box LWH (mm)	Filter LWD (mm)	Air Flow (m³/h)	Air inlet pipe A*B(mm)	Duct Link C*D(mm)	Assembly dimensions TSR*G(mm)	Ring spacing PMm	Initial P.D (Pa)	Rec Final P.D (Pa)
370370530	320320220	500	200*200	250*250	438*438	344*344	250	500
534534530	484484220	1000	320*200	370*250	588588294*294	508*508
660660460	610610150	1000	320*250	370*300	716716358*358	634*634
870650460	820600150	1200	320*250	370*300	926706436*353	844*624
680680530	630630220	1500	320*250	370*300	735736368*368	654*654
776534530	726484220	1500	400*200	450*250	832590416*295	750*508
965660460	915610150	1500	500*250	500*300	1022716511*358	939*634
1018534530	968484220	2000	500*200	550*250	1074590537*295	992*508
1270660460	1220610150	2000	500*200	550*250	1326716332*358	1244*634
955680530	945630220	2200	500*250	550*300	1052736526*368	969*654
1310680530	1260630220	3000	630*200	680*250	1366736455*368	1284*654
Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company

Product Advantages

Significantly shorten downtime

Replacing a single filter usually takes only a few minutes to more than ten minutes, significantly reducing the time the clean area is interrupted.

Easy and safe operation

Reduces the technical difficulty and risk of operation, and can be completed by ordinary trained maintenance personnel without the need for professionals to enter the ceiling for operation.

Reduce pollution risk

External rapid replacement reduces the opportunity for complex operations in the clean area and reduces the risk of introducing pollution.

Reduce maintenance costs

Save labor costs, and more importantly, greatly reduce the production loss costs caused by downtime..

Improve maintenance efficiency

Batch filter replacement can be carried out quickly as planned.

Ensure personnel safety

Reduce the risk of high-altitude operations and dismantling heavy objects.

Working Principle

Air entry

The outside air enters the box of the replaceable top liquid tank high-efficiency air supply port through the air duct.

Filtration

The air entering the box passes through the high-efficiency filter, and the dust, bacteria and other tiny particles in it are intercepted and filtered, so that the air is purified.

Air supply

The clean air after high-efficiency filtration is evenly sent to the surroundings through the diffuser, forming a uniform air flow distribution in the clean room, thereby achieving the effect of air purification and providing a clean air environment for the room.

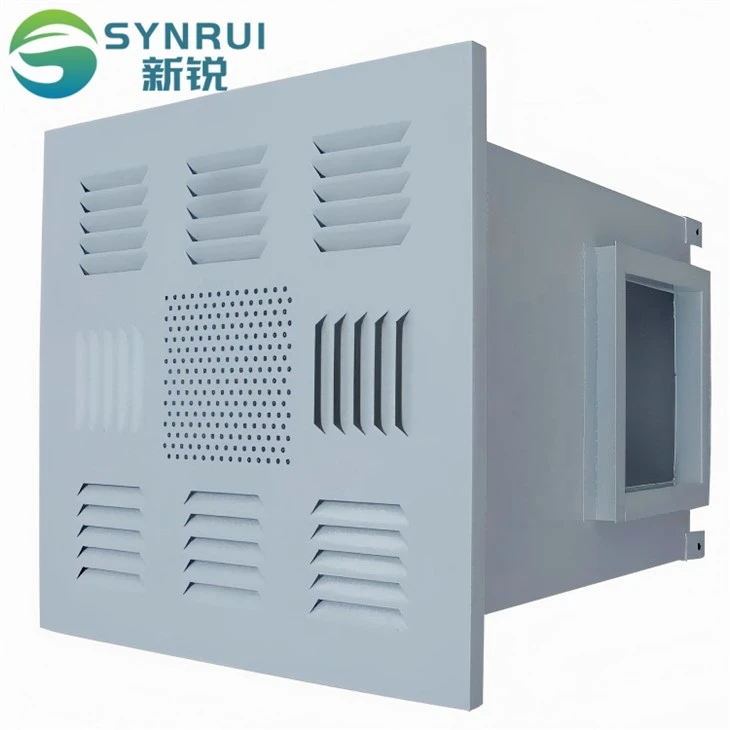

HEPA Box Real Photo
