Product Definition

PTEF filter media is an industrial filter medium made of polytetrafluoroethylene material with excellent hydrophobicity and biological inertness. It can achieve high efficiency sterilization in wet or dry environment, and can filter out 100% of bacteriophages in gas.It uses a polypropylene skeleton structure and are produced in a dust-free environment. They have uniform pore size distribution and excellent chemical corrosion resistance. It is widely used in pharmaceuticals, electronics, environmental protection and other fields.

Application

Industrial dust removal

High-temperature flue gas treatment such as steel, cement, and garbage incineration (such as bag dust collectors).

Chemical/pharmaceutical

Corrosive liquid filtration, liquid sterilization, solvent purification.

Food and beverage

Clarification and filtration of beer and juice, and edible oil refining.

Electronics/semiconductors

Ultrapure water preparation, air purification (dust and acid mist prevention).

Medical/environmental protection

Mask materials (such as PTFE membrane in N95), wastewater treatment.

Parameter Table

Width (mm)	Weight (g/㎡)	Thickness (mm)	Pressure Drop Pa@5.3cm/s	Filtration Efficiency %	Size Range um	Filter Grade
1850	80	0.3-0.4	100-140	≥99.95	0.3-0.5	H13
1850	80	0.3-0.4	140-190	≥99.995	0.3-0.5	H14
1850	80	0.3-0.4	190-240	≥99.999	0.1-0.2	U15
1850	80	0.3-0.4	240-290	≥99.9999	0.1-0.2	U16
Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company

Advantages

High lubricity and non-adhesion:

Extremely low friction coefficient, can be used as lubrication, does not adhere to any substance, and is an ideal coating for cleaning the inner layer of water pipes.

Ultra high efficiency

Up to HEPA/ULPA level.

Excellent chemical stability

Corrosion resistance, sealing, high lubricity and non-stickiness, electrical insulation and good anti-aging resistance.

Wide temperature range

Adapt to high and low temperatures, can be used for a long time at -180～260ºC.

Corrosion resistance

Resistant to strong acids and alkalis, water and various organic solvents, almost insoluble in all solvents, suitable for filtering in corrosive environments.

Good weather resistance

Has the best aging life among plastics.

Low precipitation and biological inertness

Meet high cleanliness requirements.

Working Principle

Screening effect

PTFE filter media has a small and uniform pore size. When air flows through, particles larger than the pore size will be directly intercepted on the surface of the filter media. Its working principle is similar to that of a sieve, which can effectively block large particles of dust, pollen, bacteria and other impurities.

Inertial collision

Particles in the air have inertia in the airflow. When the airflow carries particles through the micropores of the PTFE filter media, the particles will deviate from the direction of the airflow due to inertia and hit the fiber surface of the filter media, thereby being captured.

Diffusion effect

For extremely small particles, such as nano-scale particles, they will perform irregular Brownian motion in the air. When passing through the PTFE filter media, these small particles will contact the fiber surface of the filter media due to diffusion motion and be adsorbed.

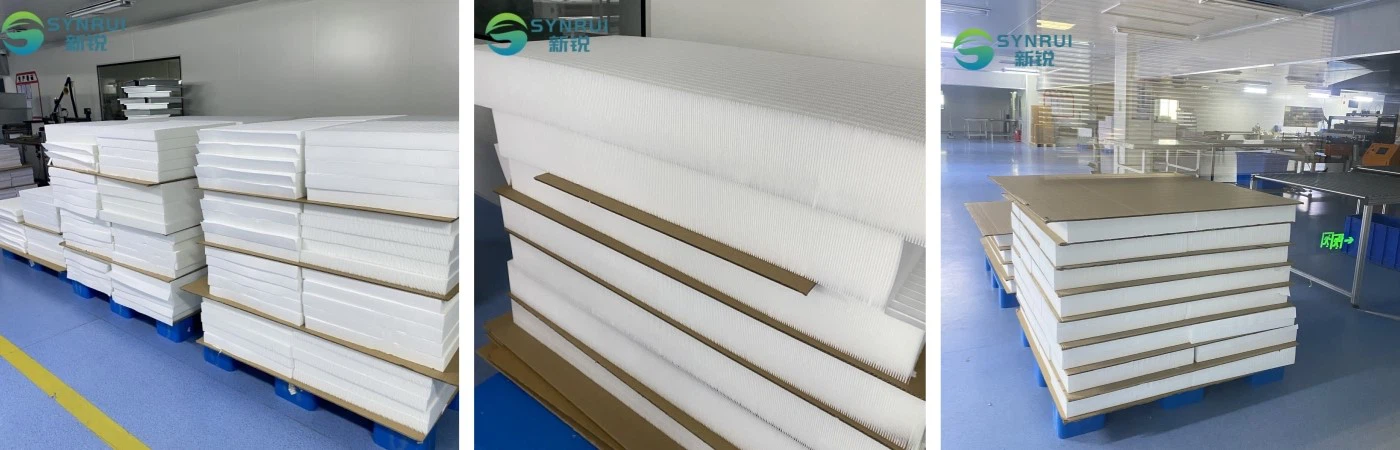

PTFE Real Photo

Why Choose Us?

01. Factory direct : The price advantage is more obvious, there are no middlemen, directly from the factory to the consumer, eliminating the middle link, and high cost performance.

02. Service: We have experienced technology, production, sales and after-sales teams with professional knowledge and rich experience related to products.

03. High product quality and standards: Ensure compliance with national R&D and manufacturing standards, ensure the environmental friendliness and durability of the products. Possess advanced technology and equipment to ensure the fineness and quality of the products.

04. Choosing us is not only choosing a filter, but also choosing an air purification solution covering the entire life cycle. Please feel free to contact us for sample testing or free solution design. We will use our professional strength to protect your air quality!
