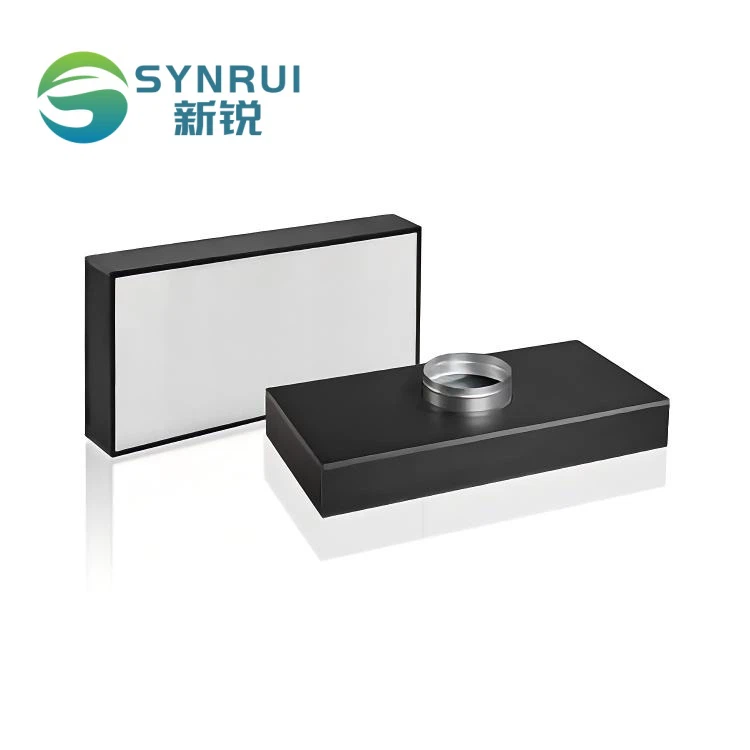

Product Definition
Frame
Usually made of lightweight, strong, low out gassing and easy to form materials, such as galvanized sheet or aluminum alloy. Designed with a connection structure that is easy to install and disassemble quickly.

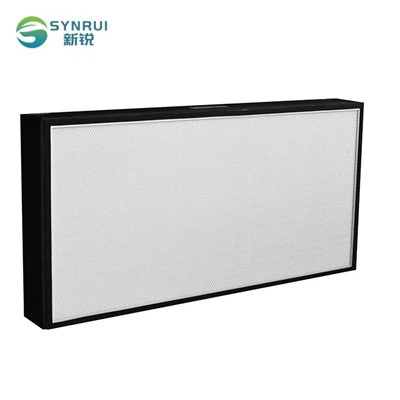

High-efficiency filter
Pre-installed in the frame, usually a H13/H14 grade HEPA filter. There is a reliable sealing performance between the filter and the frame.
Flow layer/diffuser
Located below the filter, its function is to ensure uniform distribution of the air supply airflow and effectively reduce turbulence.
Seal
Used to ensure the sealing effect with the ceiling or installed ceiling, and to achieve a quick and reliable seal with the air duct when replacing.
Product Features
|
Product Name |
Disposable Standard HEPA Filter Box |
|
Filter Grade |
High efficiency filter |
|
Frame |
Galvanized sheet, Aluminum alloy |
|
Filter Media |
Fiberglass |
|
Divider |
Hot Melt Adhesive |
|
Sealing strip |
EPDM |
|
Max temperature |
≤70℃ |
|
Max humidity |
≤100%RH |
|
Origin |
Liaocheng, China |
|
Efficiency： |
|||
|
Grade |
Filter Particles |
Filter Effect |
Standard |
|
H13 |
≥0.3μm |
≥99.99% |
EN 1822/MERV18(ASHRAE 52.2) |
|
H14 |
≥0.3μm |
≥99.999% |
EN 1822/MERV19(ASHRAE 52.2) |
|
(DOP/PAO particle counting method) |
|||
Application
Pharmaceutical industry
Applicable to high risk areas such as aseptic filling lines, freeze dryer feeding/discharging areas, liquid preparation rooms, isolators, etc.
01
Biosafety laboratories
Applicable to the core working areas of BSL-3 and BSL-4 laboratories.
02
Hospitals
Applicable to transplant operating rooms, laminar flow operating rooms, aseptic preparation rooms and other places.
03
Microelectronics and semiconductor industry
Applicable to clean workshops with extremely strict requirements for particle control.
04
Food and beverage industry
Disposable standard HEPA filter box is suitable for aseptic filling areas.
05
Parameter Table
| Box L*W*H (mm) |
Filter L*W*D (mm) |
Air Flow (m³/h) |
Air inlet pipe A*B (mm) |
Duct Link C*D (mm) |
Assembly dimensions T*S*R*G (mm) |
Ring spacing PMm |
Initial P.D (Pa) |
Rec Final P.D (Pa) |
| 370*370*530 | 320*320*220 | 500 | 200*200 | 250*250 | 438*438 | 344*344 | 250 | 500 |
| 534*534*530 | 484*484*220 | 1000 | 320*200 | 370*250 | 588*588*294*294 | 508*508 | ||
| 660*660*460 | 610*610*150 | 1000 | 320*250 | 370*300 | 716*716*358*358 | 634*634 | ||
| 870*650*460 | 820*600*150 | 1200 | 320*250 | 370*300 | 926*706*436*353 | 844*624 | ||
| 680*680*530 | 630*630*220 | 1500 | 320*250 | 370*300 | 735*736*368*368 | 654*654 | ||
| 776*534*530 | 726*484*220 | 1500 | 400*200 | 450*250 | 832*590*416*295 | 750*508 | ||
| 965*660*460 | 915*610*150 | 1500 | 500*250 | 500*300 | 1022*716*511*358 | 939*634 | ||
| 1018*534*530 | 968*484*220 | 2000 | 500*200 | 550*250 | 1074*590*537*295 | 992*508 | ||
| 1270*660*460 | 1220*610*150 | 2000 | 500*200 | 550*250 | 1326*716*332*358 | 1244*634 | ||
| 955*680*530 | 945*630*220 | 2200 | 500*250 | 550*300 | 1052*736*526*368 | 969*654 | ||
| 1310*680*530 | 1260*630*220 | 3000 | 630*200 | 680*250 | 1366*736*455*368 | 1284*654 | ||
| Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company | ||||||||
Product Advantages
Disposable standard HEPA filter box is lightweight and moisture-proof.
Completely eliminate the risk of cross-contamination: The disposable design eliminates the need for disassembly and cleaning, eliminating the possibility of cross-contamination from the source.
Significantly simplify the maintenance process and save time and cost: The replacement process is simple and quick, greatly shortening the time required for maintenance.
Significantly reduce labor costs: There is no need to hire professional cleaners or invest a lot of man-hours in disassembly and cleaning.
Ensure performance consistency: Avoid problems such as frame deformation, aging of sealing strips or improper installation caused by repeated disassembly and assembly, effectively ensuring the stability of equipment performance.
Meet strict regulatory requirements.

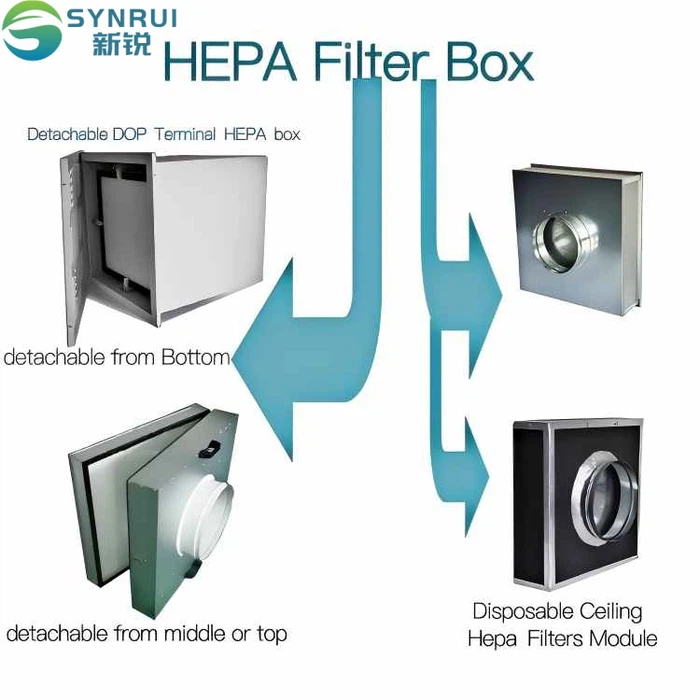

HEPA Box
Production Flow Chart
Selection and Use Precautions
Replacement cycle
Determine a reasonable replacement cycle based on pressure difference monitoring data, environmental monitoring results, risk assessment results and manufacturer recommendations.
Cleanliness level requirements
Select a disposable standard HEPA filter box that meets the corresponding level (HEPA H13/H14)
Size and air volume
It must match the installation location and the required air volume.
Installation method
Confirm its compatibility with the existing ceiling system or duct interface.
Waste disposal
Dispose of properly in accordance with biosafety or hazardous waste treatment regulations, especially units that have handled biohazardous substances.

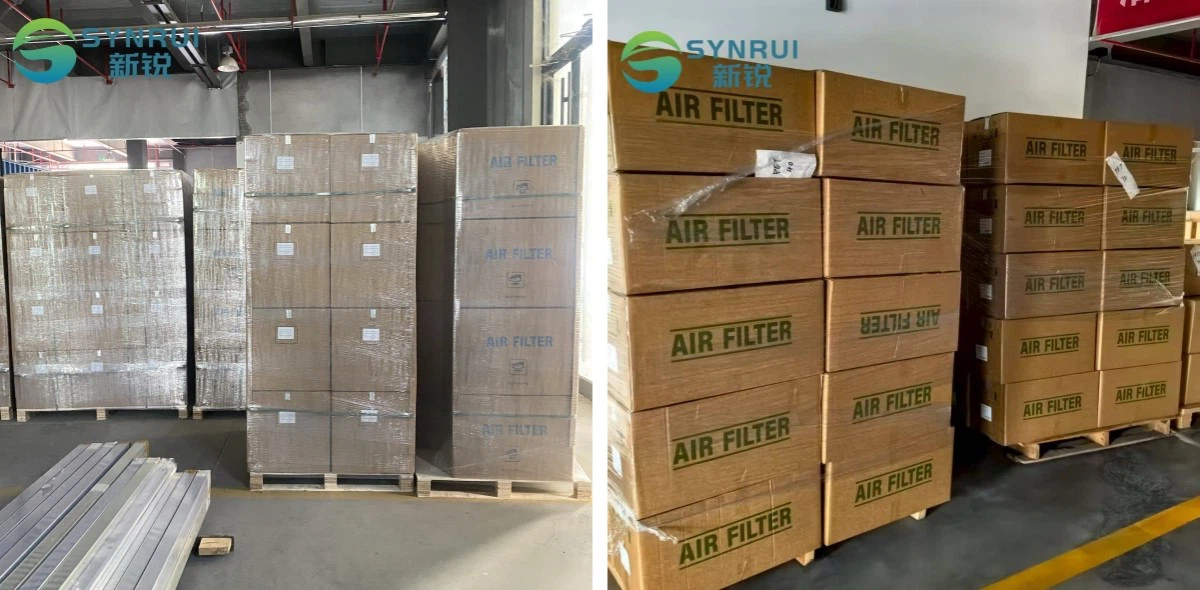

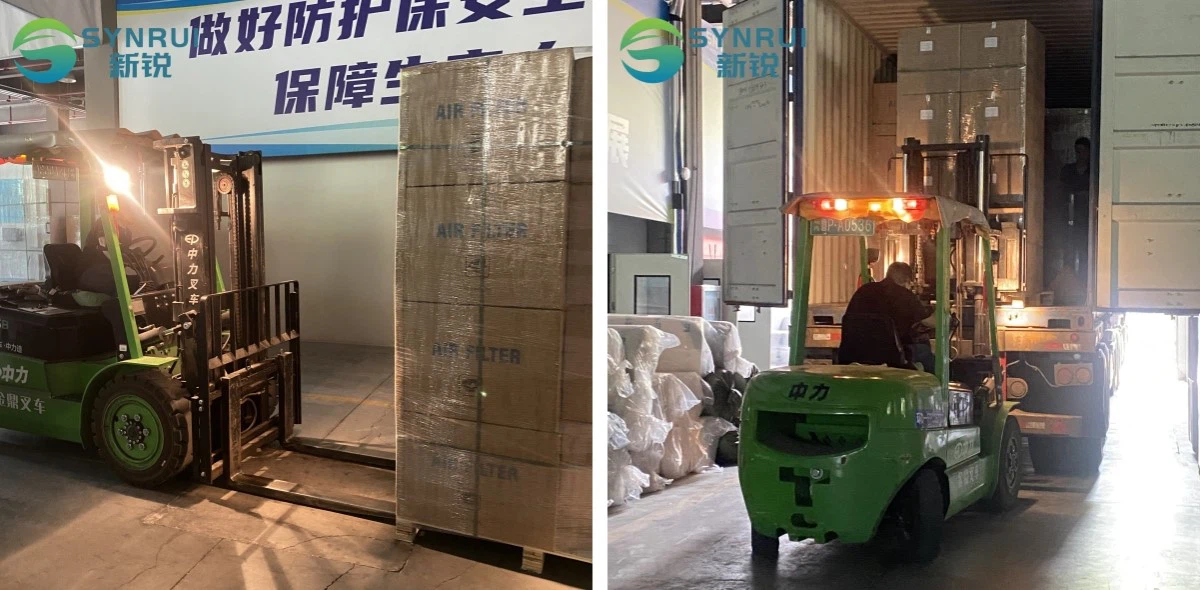

Packaging And Transportation
Why Choose Us?
;
〓 Factory direct : The price advantage is more obvious, there are no middlemen, directly from the factory to the consumer, eliminating the middle link, and high cost performance.
〓 Real-time progress feedback: Customers can obtain real-time information such as production schedule, quality inspection report, logistics order number, etc. through exclusive customer service to ensure transparent and efficient cooperation.
〓 100% factory testing: air volume, resistance, and efficiency are tested unit by unit to prevent unqualified products from flowing out.
〓 Standardized service process: consultation → demand confirmation → solution design → sample confirmation → mass production → logistics distribution → installation acceptance → after-sales tracking, the whole process is traceable.
〓 Choosing us is not only choosing a filter, but also choosing an air purification solution covering the entire life cycle. Please feel free to contact us for sample testing or free solution design. We will use our professional strength to protect your air quality!
