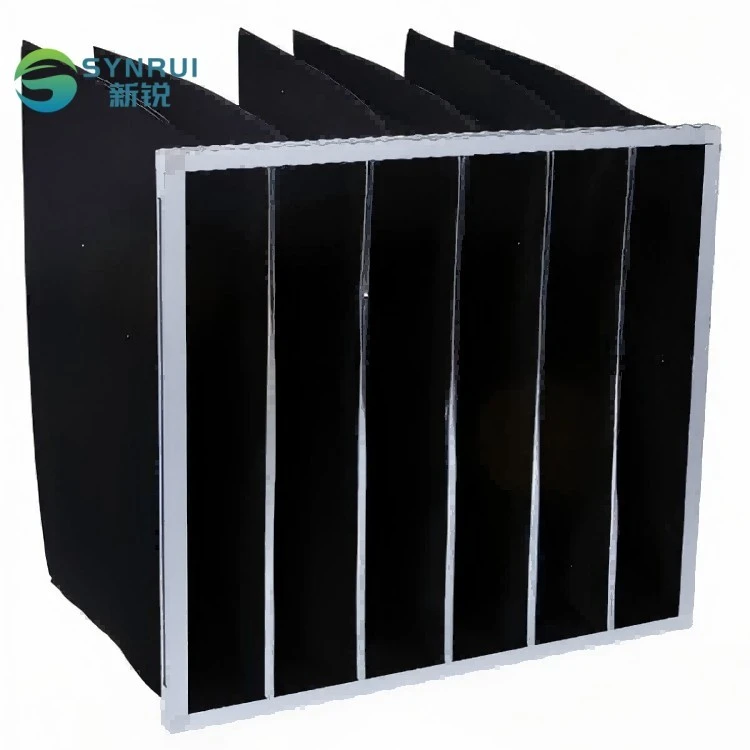

Activated Carbon Bag Filter

Activated Carbon Bag Filter
Details:
Activated carbon bag filters mainly rely on the adsorption of activated carbon to purify the air. Activated carbon has a huge surface area and rich microporous structure. It can selectively adsorb various impurities in the air, such as odor, harmful gases, volatile organic compounds, etc., through the dual effects of physical adsorption and chemical adsorption, thereby achieving the purpose of disinfection, deodorization and air purification.
Send Inquiry
Description
Send Inquiry

Product Definition





The working principle of activated carbon bag filters : It mainly uses physical adsorption (using van der Waals forces to capture molecules) and chemical adsorption (using the surface to chemically react with pollutants) to effectively remove gaseous pollutants, odorous substances and some tiny particles in the air.



Product Features



Product Name

Activated Carbon Bag Filter

Filter efficiency

G4

Frame material

Aluminum/Galvanized

Filter media

Polyester + activated carbon

Sealant

Polyurethane

Max temperature

70°C

Max relative humidity

95%RH

Origin

Liaocheng, China



Application


1

Commercial buildings

In crowded places such as office buildings, shopping malls, hotels, airports, subways, etc.,it can effectively filter dust, pollen, bacteria and odor, protect the air conditioning system and extend its service life.

2

Industrial field

Suitable for production workshops in chemical, pharmaceutical, paint, electronics and other industries, and can absorb harmful gases and odors in industrial waste gas.

3

Medical places

In hospital wards, operating rooms, laboratories and other areas, activated carbon bag filter can effectively remove germs, odors and harmful gases in the air.

4

Home environment

It can be installed in home air conditioning systems or fresh air systems to effectively remove odors generated in kitchens and bathrooms, as well as harmful gases such as formaldehyde and benzene remaining after decoration, thereby improving home air quality.



Parameter Table





Nominal Size
W*H*D
(in)
Actual Size
W*H*D
(mm)
No.of pockets Air Flow
(m³/h)
Initial P.D.(Pa)
G3 G4 F5 F6 F7 F8 F9
12*24*15 287*592*381 3 1700 52 61 68 82 135 165 210
20*24*15 490*592*381 5 2850 52 61 68 82 135 165 210
24*24*15 592*592*381 6 3400 52 61 68 82 135 165 210
12*24*15 287*592*381 4 1700 49 57 63 75 126 150 192
24*24*15 592*592*381 8 3400 49 57 63 75 126 150 192
12*24*21 287*592*533 3 1700 44 52 58 70 115 140 179
20*24*21 490*592*533 5 2850 44 52 58 70 115 140 179
24*24*21 592*592*533 6 3400 44 52 58 70 115 140 179
12*24*21 287*592*533 4 1700 41 48 53 63 106 126 161
24*24*21 592*592*533 8 3400 41 48 53 63 106 126 161
12*24*30 287*592*762 3 1700 33 39 44 52 86 118 150
20*24*30 490*592*762 5 2850 33 39 44 52 86 118 150
24*24*30 592*592*762 6 3400 33 39 44 52 86 118 150
12*24*30 287*592*762 4 1700 31 36 40 48 81 106 135
24*24*30 592*592*762 8 3400 31 36 40 48 81 106 135
Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company



Product Advantages




Double purification, efficient and versatile

Simultaneous removal of particulate matter and gas pollution, the bag structure efficiently intercepts particulate matter, and the activated carbon layer effectively adsorbs gaseous pollutants and odors such as formaldehyde, benzene, VOCs, etc.



Large dust holding capacity

Significantly reduce the frequency of replacement and improve the efficiency of use.?



Long-lasting adsorption of activated carbon

With large-capacity adsorption capacity, effectively delay the saturation time and ensure long-term stable performance.



Low wind resistance, energy saving and consumption reduction

The bag structure effectively disperses the airflow, reduces the initial wind resistance, and saves energy consumption.



Modular design

Flexible adaptation to various environments, convenient and efficient maintenance.



Controllable replacement cost

After the activated carbon is saturated, only the carbon bag needs to be replaced, and there is no need to scrap the filter as a whole, which effectively reduces the long-term use cost.



Activated Carbon Bag Filter Fiber Filtration





Activated Carbon Bag Filter Fiber Filtration



Production Flow Chart





Activated Carbon Bag Filter Process



Precautions


01. Activated carbon bag filter is generally not washable. Do not use water to clean the activated carbon layer, as this will render it ineffective.
02. Replace the filter if there is a noticeable increase in odor from the air outlet or if the gas concentration indicated by the detector increases.



Packaging And Transportation





Activated Carbon Bag Air Filter Packing
Activated Carbon Pocket Bag Filter Shipping



Why Choose Us?



 Factory direct : The price advantage is more obvious, there are no middlemen, directly from the factory to the consumer, eliminating the middle link, and high cost performance.



 We provide OEM and ODM service ,sample production and service according to your demand.



Choosing us is not only choosing a filter, but also choosing an air purification solution covering the entire life cycle. Please feel free to contact us for sample testing or free solution design. We will use our professional strength to protect your air quality!

Warranty and after-sales: Provide first-class product quality and perfect after-sales service, from installation to maintenance, to ensure the rights and interests of customers.



 Strict quality control system: The ISO 9 quality management system is implemented throughout the entire process from raw material procurement to production, testing, and packaging. Each filter passes 12 quality inspection procedures such as leakage detection and resistance test.
