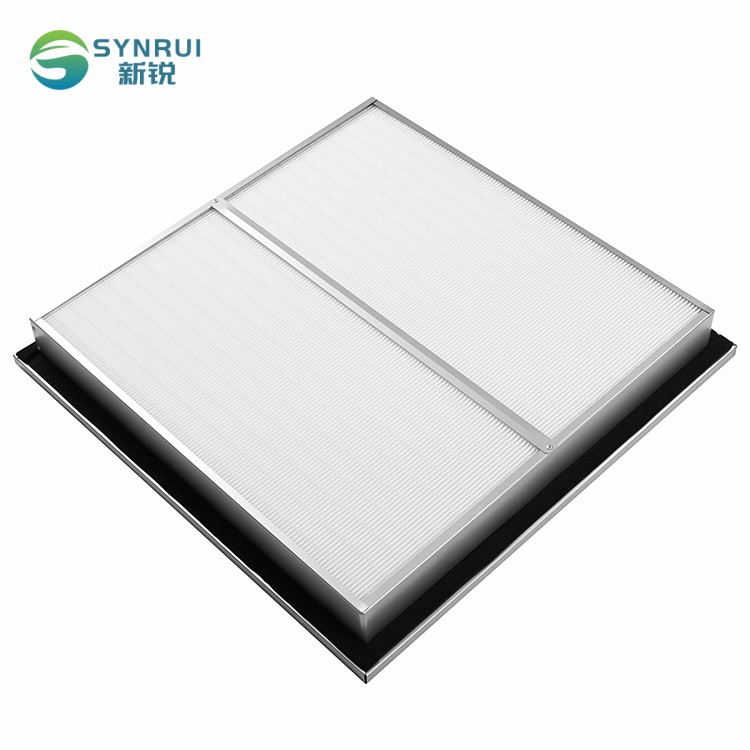

Product Definition
Mini pleat design
The no-partition design uses hot melt adhesive to replace the partition to support the filter material, reducing the material weight and wind resistance, increasing the effective filtration area, and improving the dust holding capacity.
Energy-saving Strong Wind
Energy-saving strong wind mini pleat air filter optimizes the filter material structure, reduces the initial resistance, and combines a high-strength support frame to allow operation at higher wind speeds, reduce fan energy consumption, and save energy by 20%-30%.
High-efficiency filtration
In line with HEPA (H13-H14) standards, the filtration efficiency of 0.3μm particles is ≥99.97%-99.999%, maintaining high capture efficiency under low resistance.
Lightweight and compact structure
The no-partition design reduces weight (30%-50% lighter than traditional models), facilitates installation and maintenance, and is suitable for large air volume units or FFU (fan filter unit) integration.
Product Features
|
Product Name |
Energy-saving Strong Wind Mini Pleat Air Filter |
|
Type |
Folded Filter |
|
Filtration Grade |
H14/H13 |
|
Frame |
Anodized Aluminum Profiles |
|
Filter Media |
Ultra fine glass fiber |
|
Maximum Temperature |
70℃ |
|
Maximum Humidity |
100%RH |
|
Separator |
Hot Melt Adhesive |
|
Sealant |
EPDM |
|
Media |
Baking finish steel screen,Aluminum screen |
|
Transport Package |
Carton Boxes |
|
Origin |
Liaocheng , China |
|
Efficiency： |
|||
|
Grade |
Filter Particles |
Filter Effect |
Standard |
|
H13 |
≥0.3μm |
≥99.99% |
(EN 1822)/MERV18(ASHRAE 52.2) |
|
H14 |
≥0.3μm |
≥99.999% |
(EN 1822)/MERV19(ASHRAE 52.2) |
|
(DOP/PAO particle counting method) |
|||
Application
Industrial field
Semiconductor production lines, biopharmaceutical sterile workshops, food processing, etc. require ISO Class 5-8 cleanliness environments.
Commercial field
Hospital operating rooms, data centers, high-end office building fresh air systems.
Special needs
Combined with VOCs treatment or antibacterial coating, extended to chemical laboratories or medical isolation wards.
Parameter Table
| Nominal Size W*H*D (in) |
Actual Size W*H*D (mm) |
Air Flow | Initial P.D.(Pa) | |||||||||
| Actual Size D:50mm | Actual Size D:70mm | Actual Size D:90mm | Actual Size D:110mm | |||||||||
| (m/s) | (m³/h) | (m/s) | (m³/h) | (m/s) | (m³/h) | (m/s) | (m³/h) | H13 | H14 | U15 | ||
| 23*23 | 570*570 | 0.35 | 370 | 0.45 | 470 | 0.45 | 470 | 0.45 | 470 | 90-250 | 100-250 | 140-250 |
| 46*23 | 1170*570 | 780 | 1000 | 1000 | 1000 | |||||||
| 24*12 | 610*305 | 200 | 260 | 260 | 260 | |||||||
| 24*24 | 610*610 | 420 | 550 | 550 | 550 | |||||||
| 30*24 | 762*610 | 540 | 690 | 690 | 690 | |||||||
| 36*24 | 915*610 | 650 | 830 | 830 | 830 | |||||||
| 23*23 | 1170*870 | 1210 | 1550 | 1550 | 1550 | |||||||
| 46*46 | 1170*1170 | 1640 | 2100 | 2100 | 2100 | |||||||
| Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company | ||||||||||||
Product Advantages
Low Wind Resistance Design
High dust holding capacity, energy saving and high efficiency, directly reducing operating costs.
Strong Wind Performance
Improving system efficiency.
No Partition Design
Lightweight, compact space utilization, and significant structural advantages.
Durable Filter Material
Long-term reliability, reducing the cost of the entire life cycle.
Environmental Protection
No partition design reduces the amount of metal used.
System Compatibility
Energy-saving strong wind mini pleat air filter is suitable for common AHU (air handling unit), FFU (fan filter unit) and duct system, and can replace traditional HEPA high-efficiency filters without additional modification.
Product Details and Profiles
Production Flow Chart
Work Principle
Interception effect
Larger particles in the air, such as dust and pollen, will be directly intercepted by the filter material when the airflow passes through the filter. This effect is similar to the sieve sifting, and larger particles cannot pass through the tiny pores of the filter material and are blocked on the air inlet side of the filter.
Electrostatic adsorption
Filter materials usually use fiber materials with static electricity, such as electret fibers. When tiny particles in the air approach the filter material, they will be affected by the electrostatic attraction and be firmly adsorbed on the surface of the filter material. Even very small particles can hardly escape this adsorption force.
Diffusion
For smaller particles, they will perform irregular Brownian motion in the air. In the process of passing through the filter, these small particles will constantly collide with the filter material fibers and eventually be retained on the filter material, thereby achieving a filtering effect.
Packaging And Transportation
Why Choose Us?
Standardized Service Process
Consultation → demand confirmation → solution design → sample confirmation → mass production → logistics distribution → installation acceptance → after-sales tracking, the whole process is traceable.
01
Real-time Progress Feedback
Customers can obtain real-time information such as production schedule, quality inspection report, logistics order number, etc. through exclusive customer service to ensure transparent and efficient cooperation.
02
Standardized Production
Passed ISO 9 quality management system certification, and each process is strictly tested.
03
100% Factory Testing
Air volume, resistance, and efficiency are tested unit by unit to prevent unqualified products from flowing out.
04
High Cost Performance
Factory direct supply, eliminating the price difference of middlemen, the price is 10%~20% lower than similar products in the market.
