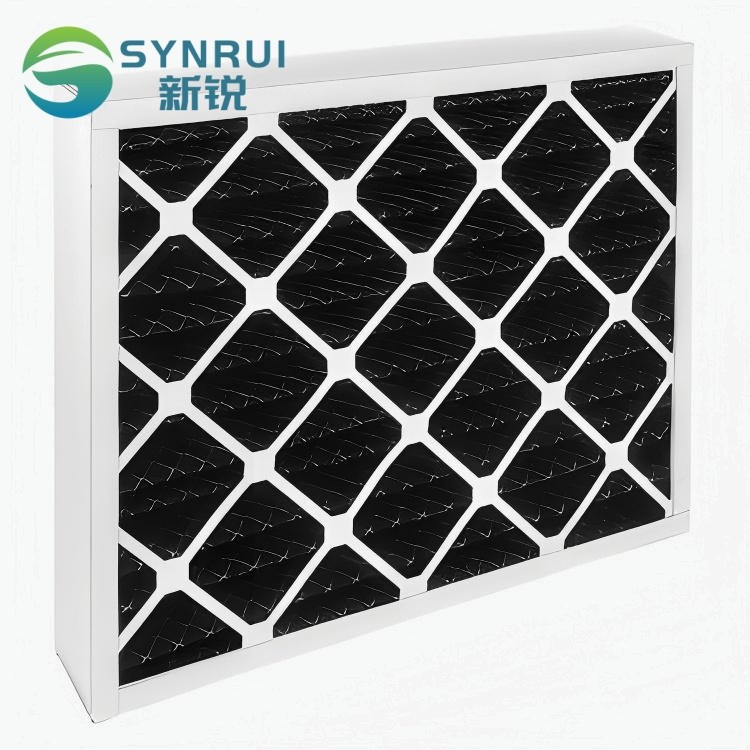

Product Definition
Activated carbon paper frame plate filter uses activated carbon as the main adsorption material, and is an air purification device that optimizes filtration performance through the "covered mesh" and "pleated (folded)" structural design.It uses the porous adsorption characteristics of activated carbon to remove pollutants in the air, and at the same time improves filtration efficiency and practicality through structural design. It is widely used in indoor air purification, ventilation systems and other scenarios.
Product Features
|
Product Name |
Activated Carbon Paper Frame Plate Filter |
|
Type |
Plate Type |
|
Grade |
G4 |
|
Efficiency Standards |
EN 779 / MERV 8 (ASHRAE 52.2) |
|
Frame |
Cardboard frame |
|
Filter media |
Polyester fiber +Activated carbon |
|
Potting material |
Polyurethane |
|
Max temperature |
70℃ |
|
Max humidity |
95%RH |
|
Transport packaging |
Carton Boxes |
|
Origin |
Liaocheng, China |
Application
Automotive air conditioning filters, subway/high-speed rail ventilation.
Parameter Table
| Nominal Size W*H*D (in) |
Actual Size W*H*D (mm) |
Air Flow (m³/h) |
Initial P.D.(Pa) | Recommended Final P.D.(Pa) |
| G4 | ||||
| 24*24*2 | 595*595*45 | 3600 | 70 | ≤200 |
| 12*24*2 | 290*595*45 | 1800 | 70 | |
| 24*24*4 | 595*595*95 | 3600 | 45 | |
| 12*24*4 | 290*595*95 | 1800 | 45 | |
| 20*24*2 | 495*595*45 | 3000 | 70 | |
| 20*20*2 | 495*495*45 | 2500 | 70 | |
| 12*20*2 | 290*495*45 | 1500 | 70 | |
| 20*24*4 | 495*595*45 | 3000 | 45 | |
| 20*20*4 | 495*495*95 | 2500 | 45 | |
| 12*20*4 | 290*495*45 | 1500 | 45 | |
| Due to limited space, the above lists the conventional specifications. For other size parameters, please consult the technicians of SYNRUI Company | ||||
Product Advantages
High-efficiency adsorption improves purification efficiency.
Structural optimization reduces wind resistance, lightweight paper frame, net protection, and extends filter life.
Economical and practical, cost-effective, low paper frame cost.
Folding design to increase the expansion area of activated carbon.
Environmental protection and safety. No secondary pollution, paper frame material is degradable, in line with environmental protection trends.
Product Details and Profiles
Production Flow Chart
Precautions for use
Regular replacement
According to the use environment and frequency, replace the filter regularly according to the product instructions to ensure the filtering effect. Generally speaking, in an environment with more serious pollution, the replacement cycle may need to be shortened.
Pay attention to the installation direction
When installing, pay attention to the direction of the covered net folded activated carbon air filter to ensure that the air can pass through the filter in the correct path and give full play to its filtering effect.
Use with other filters:
In order to improve the air purification effect, it can be used with primary filters, high-efficiency filters, etc. to form a multi-stage filtration system. The primary filter first removes large particles of impurities, and then the activated carbon filter absorbs harmful gases and small particles of impurities. Finally, the high-efficiency filter further removes tiny particles.
Maintain a dry environment
Try to avoid using the activated carbon paper frame plate filter in an environment with extremely high humidity. If this is unavoidable, consider using a dehumidifier to reduce the effect of humidity on the adsorption performance of the activated carbon.
